design-md-motion

Why this exists

DESIGN.md, the format from google-labs-code/design.md for describing a visual identity to coding agents, has no place for motion. An agent building from one invents its own durations and easings.

As of 30 September 2026, issue 47 on that repo asks for motion tokens. It has been open since 24 April 2026. The maintainer replied on 1 May that motion can be added as custom tokens in a custom section, and asked people who do it to share what they made. A pull request that added motion to the base spec was closed on 15 June on the grounds that the spec stays small and prose carries intent. So this is an extension, not a change to the spec. It asks the base spec for nothing.

The issue thread also shows what a motion section has to handle that a scale of three durations does not: loops are not transitions, reduced motion is usually a different behaviour and not a shorter animation, and springs have no standard form. SPEC.md in the repository is written around those points. The print and video profiles come from the same idea: one DESIGN.md, more than one surface.

Run it

The lint command exits 1 on errors and 2 on a usage problem. Use - as the file to read standard input.

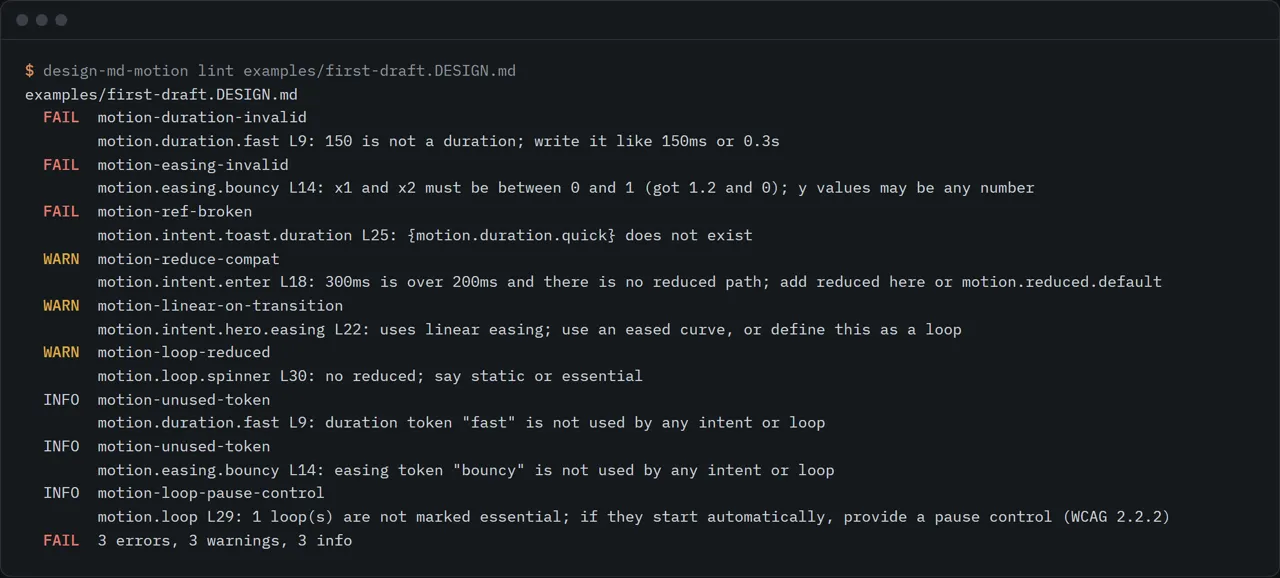

# check a file
npx github:rishsadh/design-md-motion lint DESIGN.md
npx github:rishsadh/design-md-motion lint DESIGN.md --strict --format json

# export
npx github:rishsadh/design-md-motion export DESIGN.md --format css
npx github:rishsadh/design-md-motion export DESIGN.md --format dtcg

# work out what a spring does, and get its CSS linear() easing
npx github:rishsadh/design-md-motion spring --stiffness 260 --damping 26

# print a starter block to paste into your DESIGN.md
npx github:rishsadh/design-md-motion init --surfaces

# list the rules, or explain one
npx github:rishsadh/design-md-motion rules
npx github:rishsadh/design-md-motion explain motion-reduce-compat

Options for lint: --threshold <ms> (default 200) sets where the reduced-motion check starts, --max-transition <ms> (default 1000), --max-settle <ms> (default 1000), --disable <rule,rule>, and --strict to fail on warnings.

What goes in the file

A small motion block. Intents reference the scale, and every intent says what happens under reduced motion.

motion:
  duration: { fast: 120ms, medium: 200ms, slow: 400ms }
  easing:
    standard: [0.2, 0, 0, 1]
    decelerate: [0, 0, 0, 1]
  spring:
    settle: { stiffness: 260, damping: 26 }
  loop:
    spinner: { period: 1100ms, easing: linear, reduced: essential }
  reduced: { default: fade, duration: 100ms }
  intent:
    enter:
      duration: "{motion.duration.medium}"
      easing: "{motion.easing.decelerate}"
      properties: opacity 0 to 1, rise 8px
      reduced: fade
    confirm:
      spring: "{motion.spring.settle}"
      properties: scale 0.9 to 1 with a small overshoot
      reduced: ease

Then a ## Motion section in the body, between Shapes and Components, for what a scale cannot hold: when to move, what leads, what the choreography is, and what reduced motion looks like.

Print and video profiles

Print and video profiles are a surfaces: block.

surfaces:
  print: { trim: { width: 210mm, height: 297mm }, bleed: 3mm, safe-margin: 6mm, color-mode: cmyk, color-profile: your printer's profile }
  video: { width: 1920, height: 1080, frame-rate: 25, safe-area: { action: 3.5%, graphics: 5% } }

The rules

There are 36 rules, in docs/RULES.md in the repository, each with its reason. The ones that matter most:

• motion-reduce-compat: a transition over 200ms with no reduced-motion path.
• motion-loop-reduced: a loop with no say on what happens when motion is reduced.
• motion-linear-on-transition: linear easing on a one-way transition.
• motion-ref-broken: an intent that points at a token that is not there.
• print-bleed-missing: a print size with no bleed.
• video-safe-area: graphics that are not inside the action-safe area.
• video-duration-off-grid: a motion duration that does not land on whole video frames.

Warnings are questions. To keep one on purpose, list it under motion.acknowledged with a reason.

Limits

• It does not change DESIGN.md. The official linter reads these files with no errors, and warns that motion and surfaces are ignored by its exporters. Use the exporters here for those.
• It checks the file, not your product. It cannot tell if a page respects prefers-reduced-motion, if a video flashes, or if a PDF has the bleed it says it has. It checks that the numbers you declared are consistent and within limits.
• Some thresholds are judgement calls. The 200ms reduced-motion line and the 1000ms ceilings are heuristics, not WCAG numbers. WCAG 2.3.3 has no duration threshold. Both are configurable.
• Print numbers are yours. Minimum text size, stroke and image resolution depend on your printer, so there are no defaults. Bleed, safe-area and flash limits are cited in docs/SOURCES.md.
• Springs are checked as physics. Damping ratio, overshoot and settle time come from the closed form solution, not from a browser. The CSS export samples the curve, so it is an approximation.
• The video profile overlaps HyperFrames frame.md in places. That format describes how to compose a video. This one is a short block of limits inside a DESIGN.md.
• No platform overlay zones for short vertical video. They change too often to ship as facts.
• It is a draft. Version 0.1, the spec will change.

Licence

MIT. Needs Node 18 or later. One dependency, yaml.
